Product Overview
The 8600-2012D Co-Located Dual-Mode Soil Flux Chamber is a next-generation soil flux chamber developed by PRI-ECO for long-term ecosystem carbon and nitrogen cycling research and greenhouse gas budget observations.
The system addresses challenges in conventional soil greenhouse gas measurements, where paired measurements of Net Ecosystem Exchange (NEE) and Ecosystem Respiration (Reco) can be affected by spatial heterogeneity and temporal mismatch. The 8600-2012D performs continuous paired measurements on the same measurement base by automatically alternating between transparent mode and opaque mode.
The system integrates PRI-ECO technologies including Dynamic Pressure Equilibrium™ (DPE™), Distributed Spatial Sampling™ (DSS™), and Integrated Chamber Mast™ (ICM™), enabling measurement of CO₂, CH₄, N₂O, and stable isotope fluxes with compatible analyzers.
Core Technologies
1.Co-Located Dual-Mode™ Continuous Paired Measurement

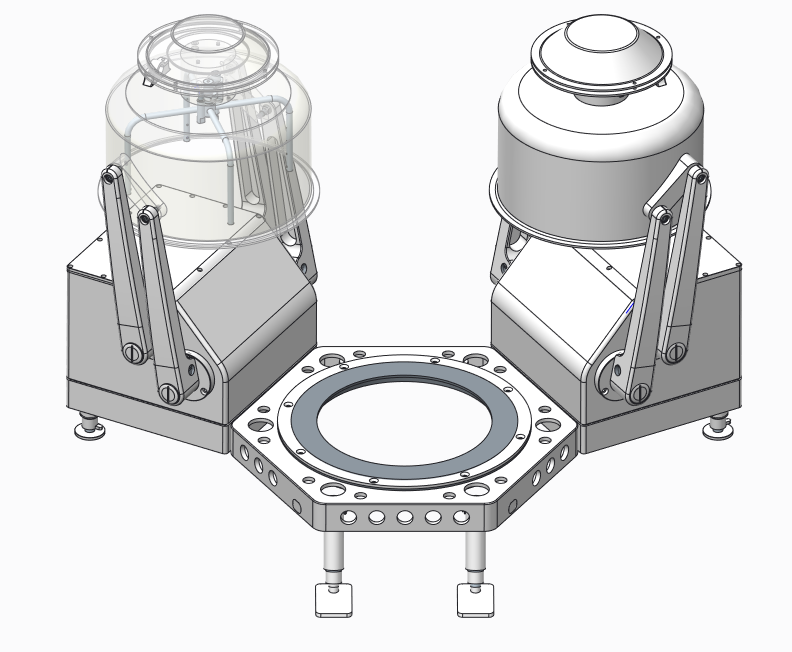

The system performs transparent chamber closure (NEE), environmental recovery, and opaque chamber closure (Reco) cycles on the same measurement base. This eliminates paired errors caused by spatial differences, root distribution variation, and time-window mismatch.
2. Dynamic Pressure Equilibrium™ (DPE™)
A patented pressure balancing structure minimizes pressure differences between chamber and ambient atmosphere, reducing wind disturbance, pump effects, and pressure signals caused by chamber operation.
3. Distributed Spatial Sampling™ (DSS™)
An evenly distributed cross-shaped sampling structure with balanced flow channels improves chamber-scale gas representativeness and reduces errors caused by concentration hotspots and dead zones.
4. Integrated Chamber Mast™ (ICM™)
The Integrated Chamber Mast integrates distributed sampling components, gas ports, environmental sensor channels, and pressure equilibrium interfaces, improving system integration and maintenance.
5. Environmental Recovery Design™
After measurement, the chamber automatically moves away from the measurement base to restore natural sunlight, rainfall, and wind conditions.
6. Self-Locking Drive™ & Flood-Resistant Housing™
Precision worm gear drive provides mechanical self-locking and power-loss holding. The enclosure provides IP67 protection for long-term deployment in wetlands, rice paddies, tidal zones, and permafrost environments.
Technical Specifications
Measurement Targets: CO₂, CH₄, N₂O, stable isotopes, and other greenhouse gases, defined by analyzer
Measurement Area: 232.4 cm² (Collar Inner Diameter: 17.2 cm)
Chamber Volume: 3463 cm3
Pressure Balance: Patented Dynamic Pressure Equilibrium™
Sampling Method: Distributed Equidistant Cross Sampling (DECS)
Drive System: Worm gear drive with self-locking and power-loss holding
Opening/Closing Time: ~25 s
Operating Temperature: -30 to +60 °C
Operating humidity：0~100%, no condensation
Protection Rating: IP67, without an air intake port for the breathing chamber
Communication: RS485 (Modbus RTU)
Operating Voltage: 12 VDC
Average Power Consumption: < 20 W
Size & Wight: 591mm (L) × 507 mm (W)× 438 mm (H)；19 kg
Compatible System: PRI-8600D (16 channels standard, expandable to 32+ channels)
Soil Sensor
Temperature:
Range: -40 ~ +85 °C
Precision: ± 0.2 °C
Moisture :
Range: 0 ~ 100%
Precision: ± 3 %
Cable length: 15m (Standard)
Typical Applications
PRI-ECO, China
The 8600-2012D Co-Located Dual-Mode Soil Flux Chamber is a next-generation soil flux chamber developed by PRI-ECO for long-term ecosystem carbon and nitrogen cycling research and greenhouse gas budget observations.
The system addresses challenges in conventional soil greenhouse gas measurements, where paired measurements of Net Ecosystem Exchange (NEE) and Ecosystem Respiration (Reco) can be affected by spatial heterogeneity and temporal mismatch. The 8600-2012D performs continuous paired measurements on the same measurement base by automatically alternating between transparent mode and opaque mode.
The system integrates PRI-ECO technologies including Dynamic Pressure Equilibrium™ (DPE™), Distributed Spatial Sampling™ (DSS™), and Integrated Chamber Mast™ (ICM™), enabling measurement of CO₂, CH₄, N₂O, and stable isotope fluxes with compatible analyzers.
Core Technologies
1.Co-Located Dual-Mode™ Continuous Paired Measurement
The system performs transparent chamber closure (NEE), environmental recovery, and opaque chamber closure (Reco) cycles on the same measurement base. This eliminates paired errors caused by spatial differences, root distribution variation, and time-window mismatch.
2. Dynamic Pressure Equilibrium™ (DPE™)
A patented pressure balancing structure minimizes pressure differences between chamber and ambient atmosphere, reducing wind disturbance, pump effects, and pressure signals caused by chamber operation.
3. Distributed Spatial Sampling™ (DSS™)
An evenly distributed cross-shaped sampling structure with balanced flow channels improves chamber-scale gas representativeness and reduces errors caused by concentration hotspots and dead zones.
4. Integrated Chamber Mast™ (ICM™)
The Integrated Chamber Mast integrates distributed sampling components, gas ports, environmental sensor channels, and pressure equilibrium interfaces, improving system integration and maintenance.
5. Environmental Recovery Design™
After measurement, the chamber automatically moves away from the measurement base to restore natural sunlight, rainfall, and wind conditions.
6. Self-Locking Drive™ & Flood-Resistant Housing™
Precision worm gear drive provides mechanical self-locking and power-loss holding. The enclosure provides IP67 protection for long-term deployment in wetlands, rice paddies, tidal zones, and permafrost environments.
Technical Specifications
Measurement Targets: CO₂, CH₄, N₂O, stable isotopes, and other greenhouse gases, defined by analyzer
Measurement Area: 232.4 cm² (Collar Inner Diameter: 17.2 cm)
Chamber Volume: 3463 cm3
Pressure Balance: Patented Dynamic Pressure Equilibrium™
Sampling Method: Distributed Equidistant Cross Sampling (DECS)
Drive System: Worm gear drive with self-locking and power-loss holding
Opening/Closing Time: ~25 s
Operating Temperature: -30 to +60 °C
Operating humidity：0~100%, no condensation
Protection Rating: IP67, without an air intake port for the breathing chamber
Communication: RS485 (Modbus RTU)
Operating Voltage: 12 VDC
Average Power Consumption: < 20 W
Size & Wight: 591mm (L) × 507 mm (W)× 438 mm (H)；19 kg
Compatible System: PRI-8600D (16 channels standard, expandable to 32+ channels)
Soil Sensor
Temperature:
Range: -40 ~ +85 °C
Precision: ± 0.2 °C
Moisture :
Range: 0 ~ 100%
Precision: ± 3 %
Cable length: 15m (Standard)
Typical Applications
- Forest and grassland ecosystems: Long-term monitoring of soil respiration (Rs) and ecosystem respiration (Reco).
- Agricultural ecosystems: Soil carbon cycling dynamics, root respiration, and fertilization impact assessment.
- Wetland and aquatic ecosystems: CO₂ and CH₄ flux measurements.
- Permafrost ecosystems: Greenhouse gas release mechanisms during freeze-thaw cycles.
- Isotope ecology: Online monitoring of stable isotopes including δ13CO₂, δ13CH₄, and δ15N₂O.
- Carbon sink and carbon accounting projects: Soil carbon monitoring and carbon cycle verification.
PRI-ECO, China
